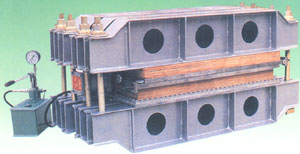

LBD-type electro-thermal anti-explosive vulcanizer
Performance and function
LBD-type electro-thermal anti-explosive vulcanizer is independently developed and designed by our company,which is mainly applicable to the coal mine,the power plant,dock,chemical,metallurgy,and construction material departments with the same anti-explosive grade.The product is used for the flame resistant whole-core conveying belt in the mine,and the vulcanized glue connection of general steel core belt,nylon belt and canvas belt joint.It has achieved the third prize of technological progress by the original Coal Ministry and the title of the national new product.
Basic parameters
SN Name Unit Model of the Vulcanizer
LBD-800×625 LBD-1000×625 LBD-1200×625 LBD-1400×625 LBD-1600×625 LBD-1800×625
1 Width of the Vulcanization adhesive tape mm 800 1000 1200 1400 1600 1800
2 Set temperature ℃ 145
3 Warm-up time min ≤50
4 Pressurizing device for pressure Mpa 1.0-2.0
5 Voltage V 660
6 Gross power kw 9.24 11.4 13.68 15.84 17.94 20.2
7 Electric heating plate Effective operating surface size(L*W) mm 920×625 1120×625 1320×625 1535×625 1740×625 1940×625
Maximum power kw 4.62 5.70 6.84 7.92 8.97 10.1
Line current A 4.03 4.98 5.98 6.93 7.85 8.84
Weight kg 53.5 62 70 79.5 88.5 98.5
8 Frame Appearance size(L*W*H) mm 1250×102×200 1450×102×200 1650×118×250 1950×118×250 2100×122×280 2300×132×320
Weight kg 45 52 75 88 110 148
9 Pressure plate Appearance size(L*W*H) mm 920×625 1120×625 1320×625 1535×625 1740×625 1940×625
Weight kg 50 65 70 85 95 105
10 Upper thermal baffle mm 920×625 1120×625 1320×625 1535×625 1740×625 1940×625
11 Lower thermal baffle mm 840×545 1040×545 1240×545 1455×545 1660×545 1860×545
12 Host Appearance size(L*W*H) mm 1390×625×793 1590×625×793 1790×625×860 2005×625×860 2220×625×860 2435×625×860
Gross weight kg 825 950 1140 1380 1670 1960
